COMING SOON
⚡⚡⚡
The 5-Stage Power Supply Revolution
⚡⚡⚡
Sbooster ICON AIB-UP
⚡⚡⚡
COMING SOON ⚡⚡⚡ The 5-Stage Power Supply Revolution ⚡⚡⚡ Sbooster ICON AIB-UP ⚡⚡⚡
New revolutionary
power supply design
to boost the Node ICON
Sbooster’s Bluesound ICON
Active Interface Board UP
(ICON AIB-UP)

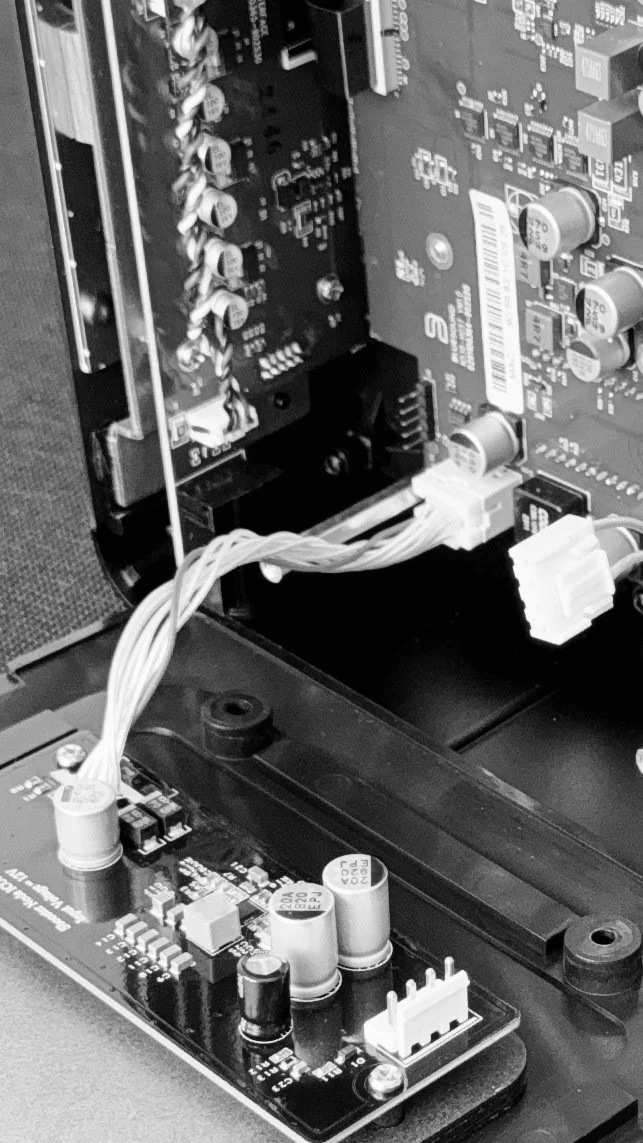

Designed to complement an already outstanding device — the Bluesound Node ICON — the ICON AIB-UP replaces the stock internal power supply. It delivers the speed, low noise floor, and clean linear power your streamer deserves, taking your musical journey to a deeper level.
The 5-Stage Power Supply Revolution
Building UPon the heritage of our legendary BOTW P&P ECO linear power supplies, we developed a highly sophisticated 5-stage lossless power conversion architecture. This unique concept delivers an incredible transient response, effortlessly matching the complexity of any musical demand.
Ultra-Clean Foundation: The ICON AIB-UP replaces the stock internal SMPS and connects the ICON externally to our linear upgrade power supply, the BOTW P&P ECO MKII 12-13V.
Superfast Power Conversion: A groundbreaking power concept! The design of the ICON AIB-UP efficiently converts the 3A power rating of the external BOTW P&P ECO MKII 12-13V power supply into an incredible 6.5A average and a staggering 8A peak current capability. Massive headroom for dynamic peaks, without wasting energy to heat.
EMI Filter: The Split-current of the BOTW P&P ECO actively eliminates electromagnetic radiation right at the entrance of the ICON, minimizing any potential interference.
HF Input Filter: The connection between the Split-current unit and the ICON AIB-UP is designed to strip away residual high-frequency noise for a completely dead-silent, pitch-black background.
Audiophile Soundstage: The ICON AIB-UP features meticulously selected, audio-grade components to deliver a supreme musical experience with a fully holographic soundstage expanding in width, depth, and height.

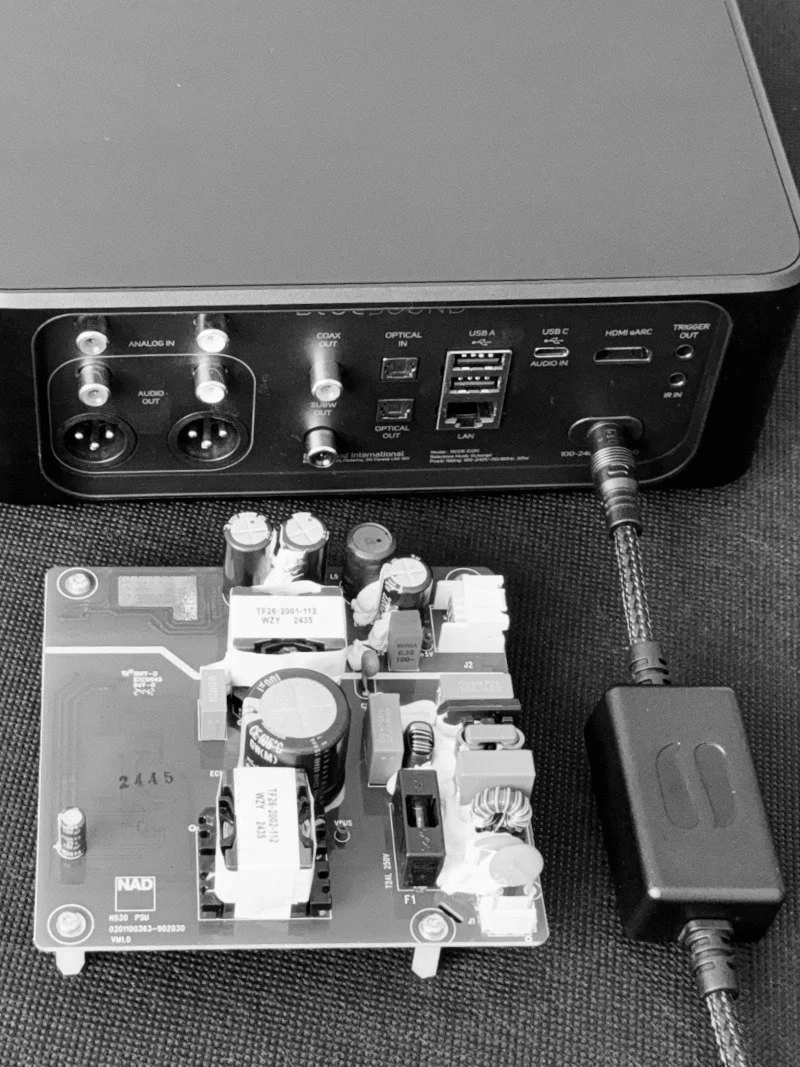

ICON SMPS OUT and Sbooster IN
Full-System Optimization
The 5-Stage Power Supply Revolution clean, ultra-fast current for optimal performance across every section of the ICON:
Refined Internal DAC Precision: Lowering the background noise floor allows the dual DACs to present richer timbre, subtle micro-details, and an effortless analog flow
Hum-Free Balanced XLR: Full galvanic isolation eliminates ground loops, keeping balanced connections quiet and spatial cues well-defined
Pristine USB Digital Stream: Delivers a clean, bit-perfect data stream free from power-induced jitter and noise
Controlled Headphone Amplifier: Provides the current and grip needed for dynamic, fatigue-free headphone listening

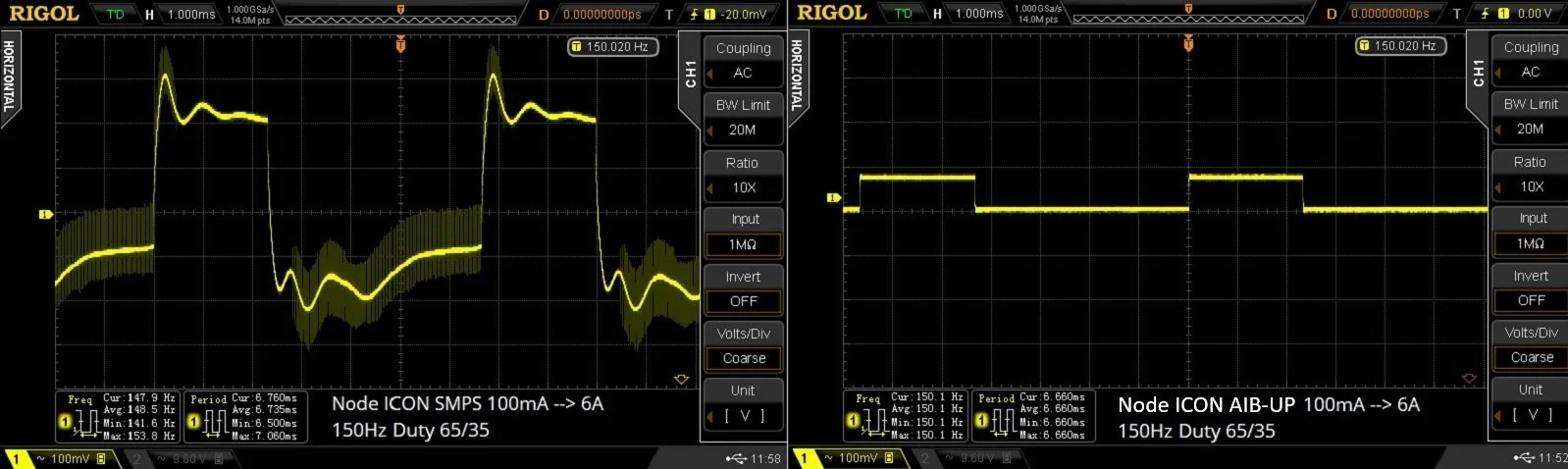

Transient response
Icon SMPS vs Sbooster ICON AIB-UP & BOTW P&P ECO MKII 12-13V
ICON SMPS (test made with original wire harness)
Sbooster ICON AIB-UP & BOTW P&P ECO MKII 12-13V (test made with custom made OCC wire harness)
Wiring and connectors

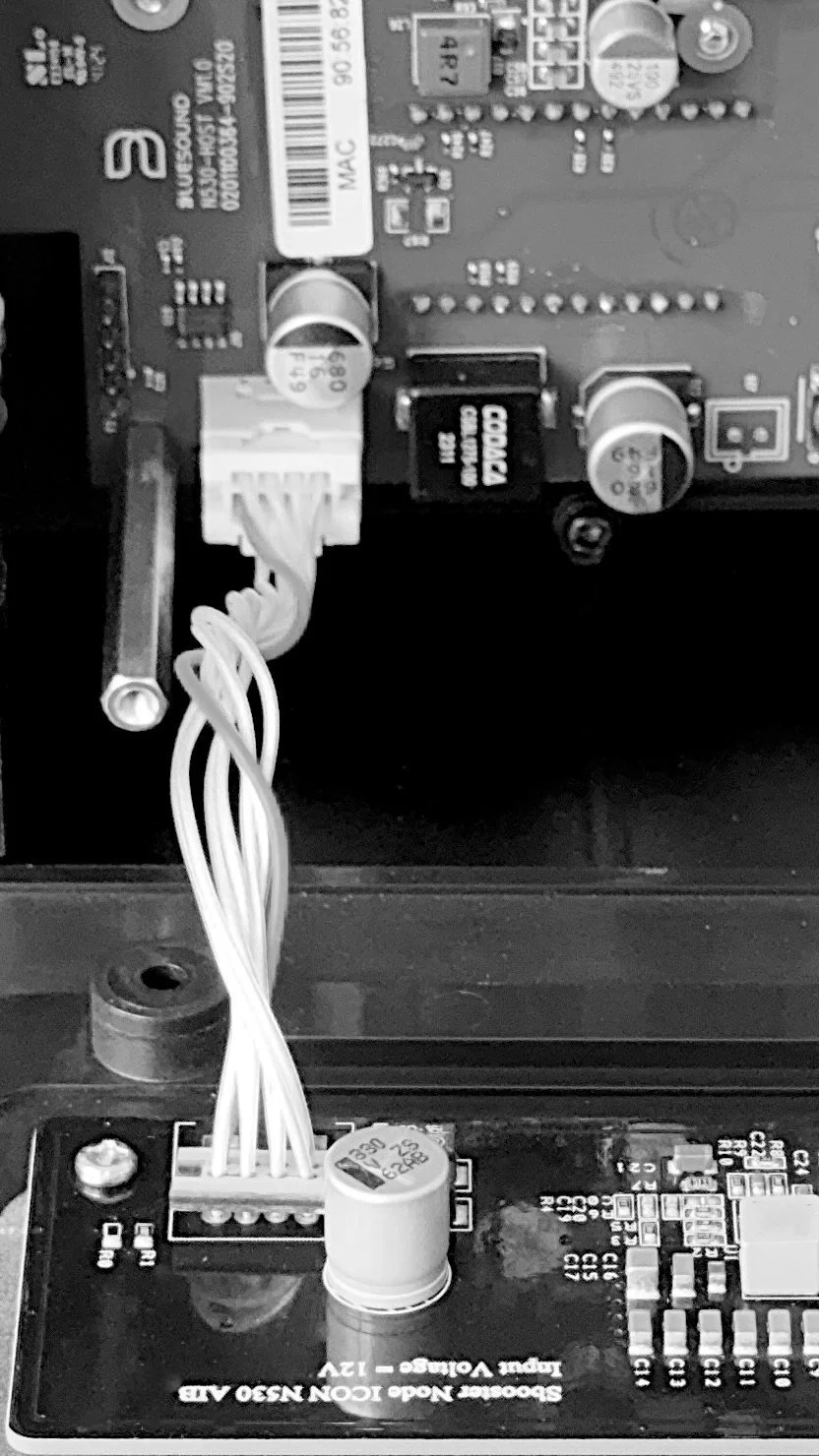

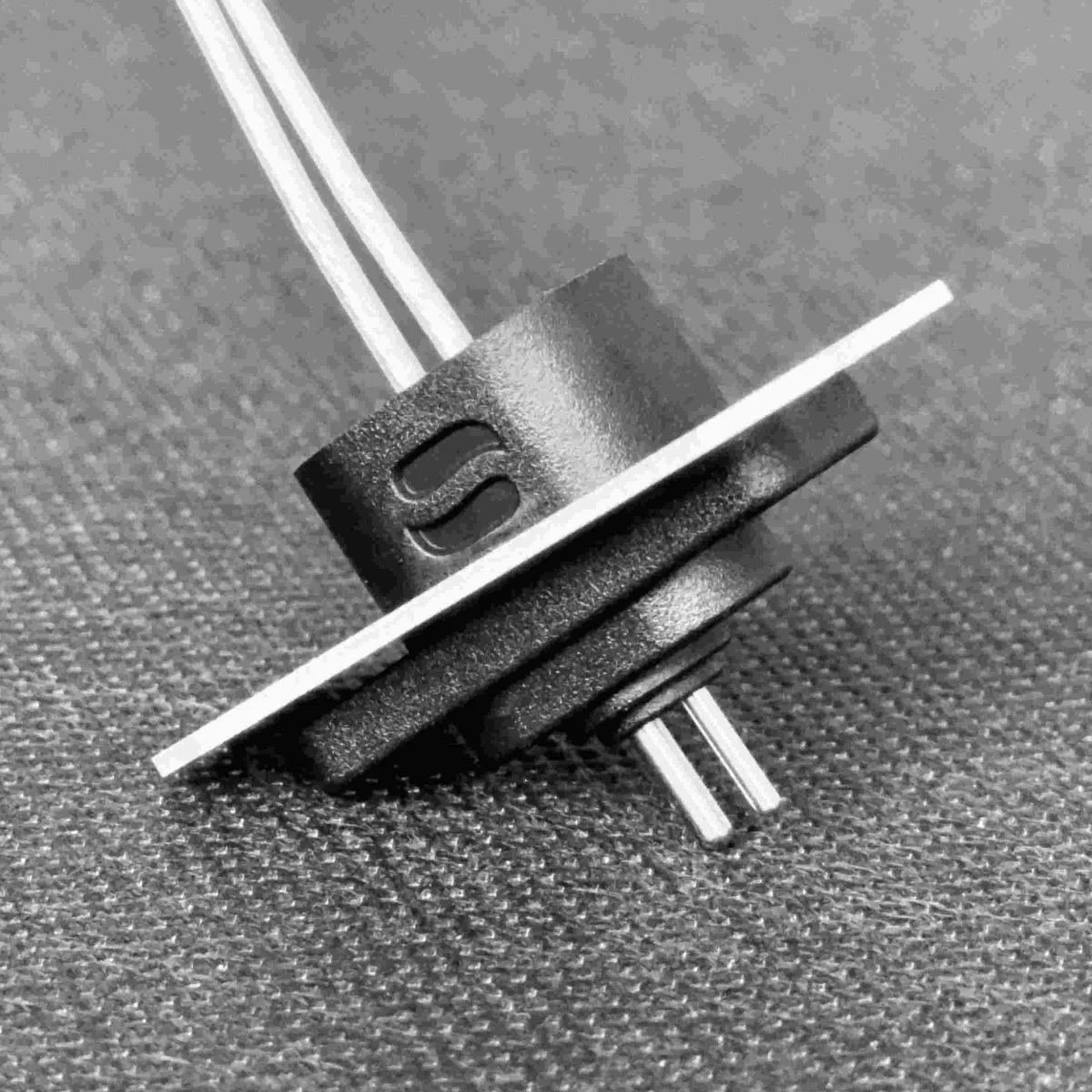

Improved wiring: Silver-plated OCC copper (PTFE insulated) for the OEM-C8 connector and wire harness. The connectors at the wire ends are original JST-connectors.

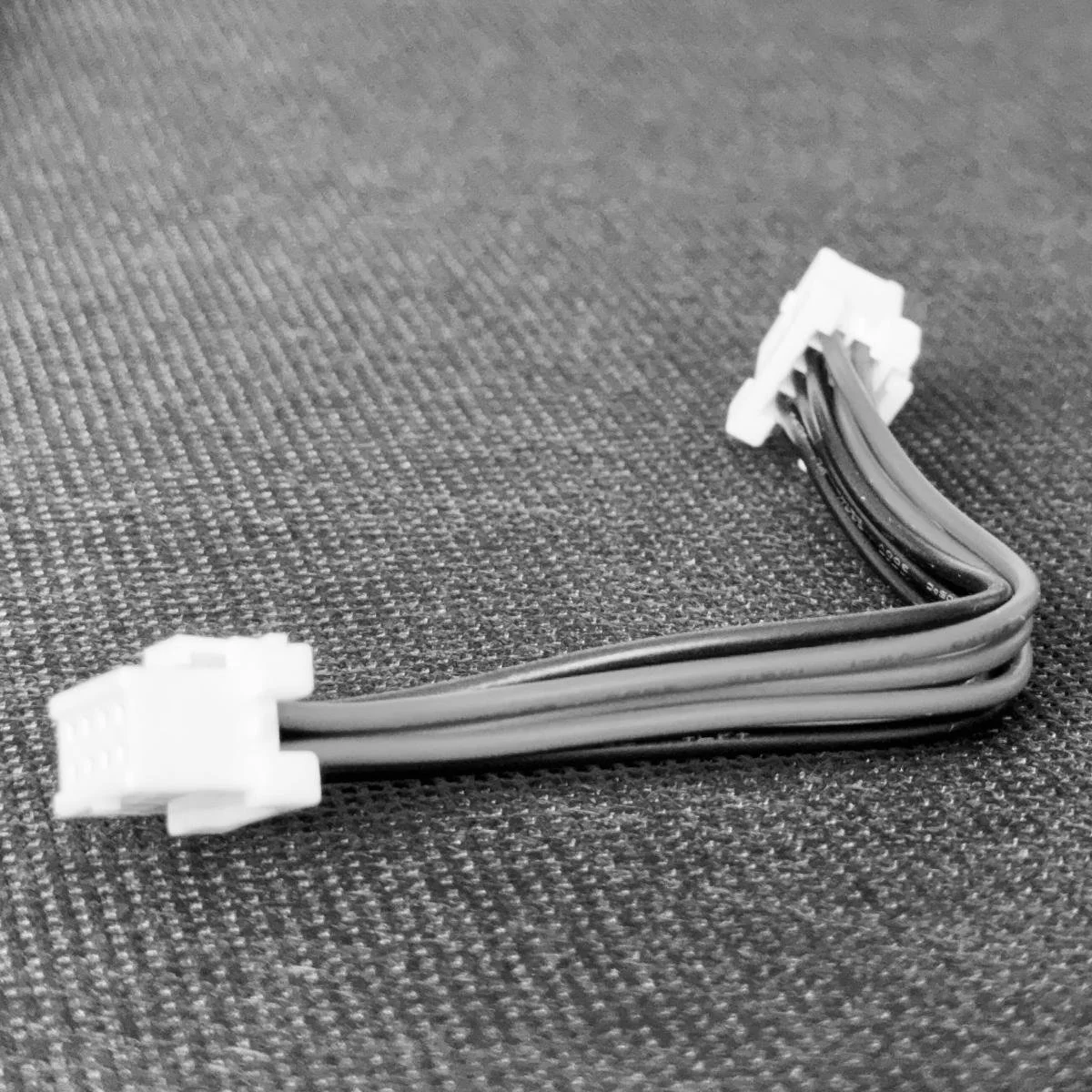

ICON original wire harness

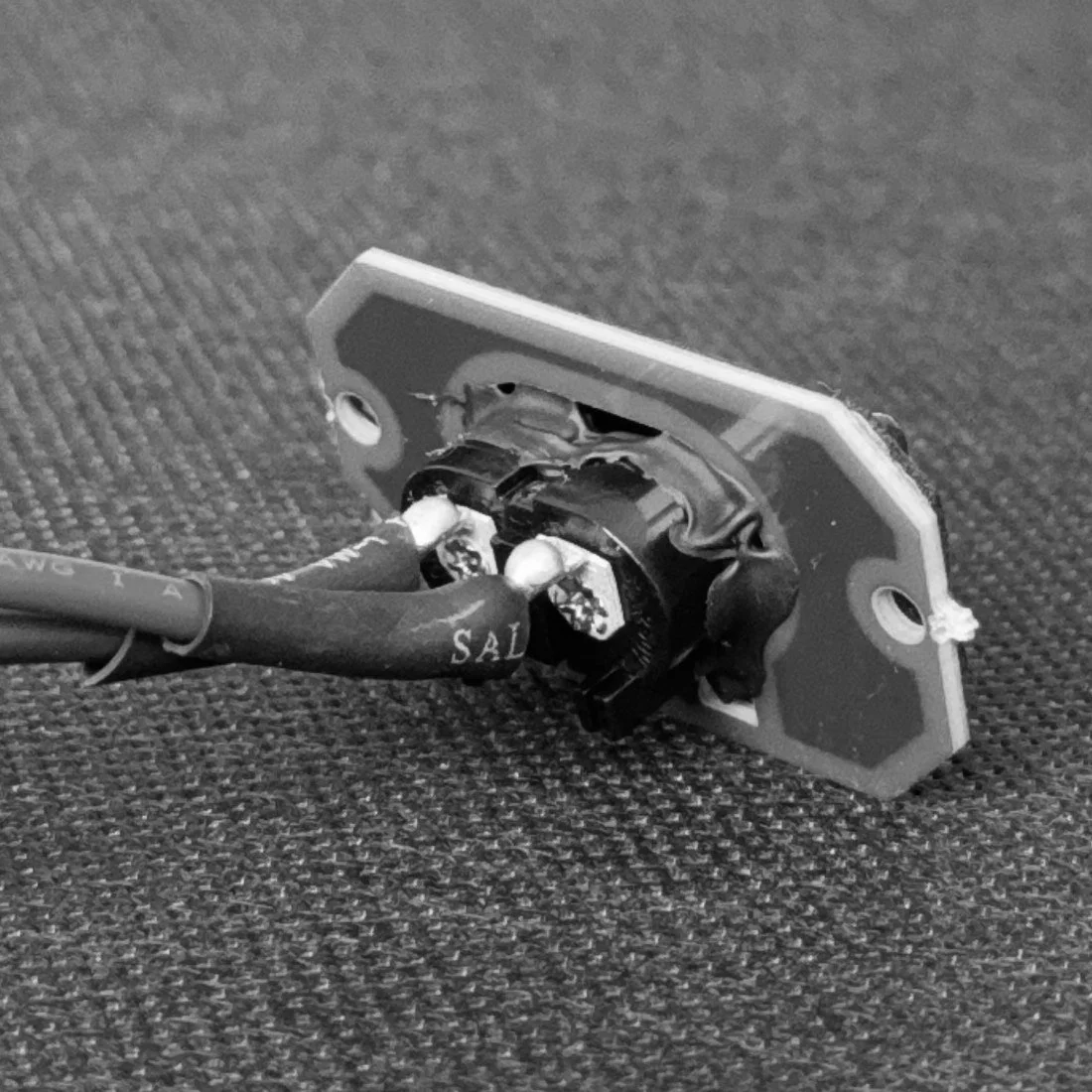

ICON original C8 connector
What’s Included in the Kit
The Sbooster ICON AIB-UP kit includes:
Sbooster ICON Active Interface Board with soldered wire harness, 8P-JST connector, and walnut strain relief bracket

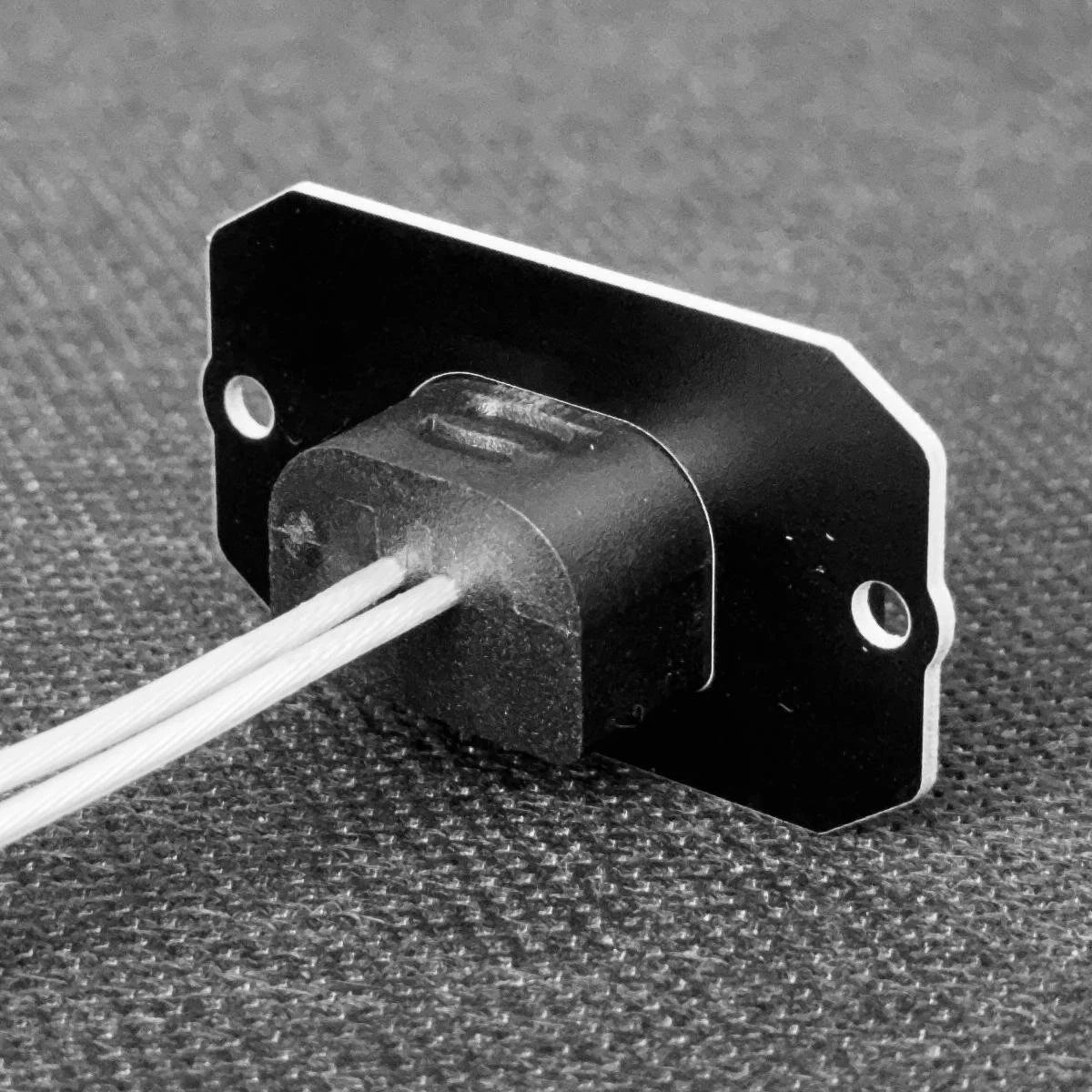

OEM C8 connector
Custom installation bracket
Special cryo-treated fuse for the BOTW P&P ECO MKII 12-13V power supply

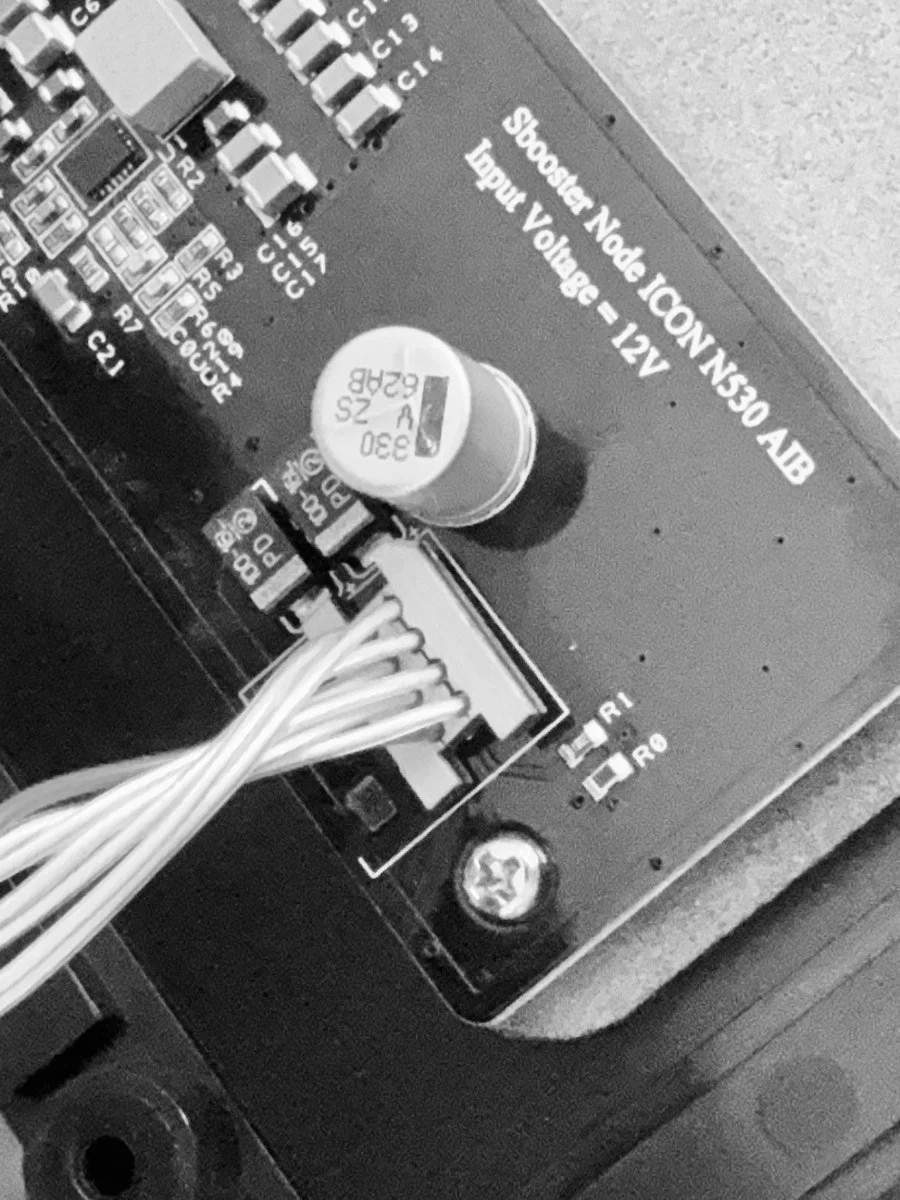

Technical Specifications: Sbooster ICON AIB-UP
Input Voltage: 12V DC (Provided by BOTW P&P ECO MKII 12-13V)
Output Voltage: 12V DC
Proprietary Technology: Sbooster Decoy V3 advanced design to suppress ground-plane noise and RFI
Capacitors: Audio-grade hybrid polymer
Input Connector: Gold-plated high-current 2-pin connector
8-Pin Output connector: Genuine JST-contacts and housing
Wiring: Silver-plated OCC copper (PTFE insulated)

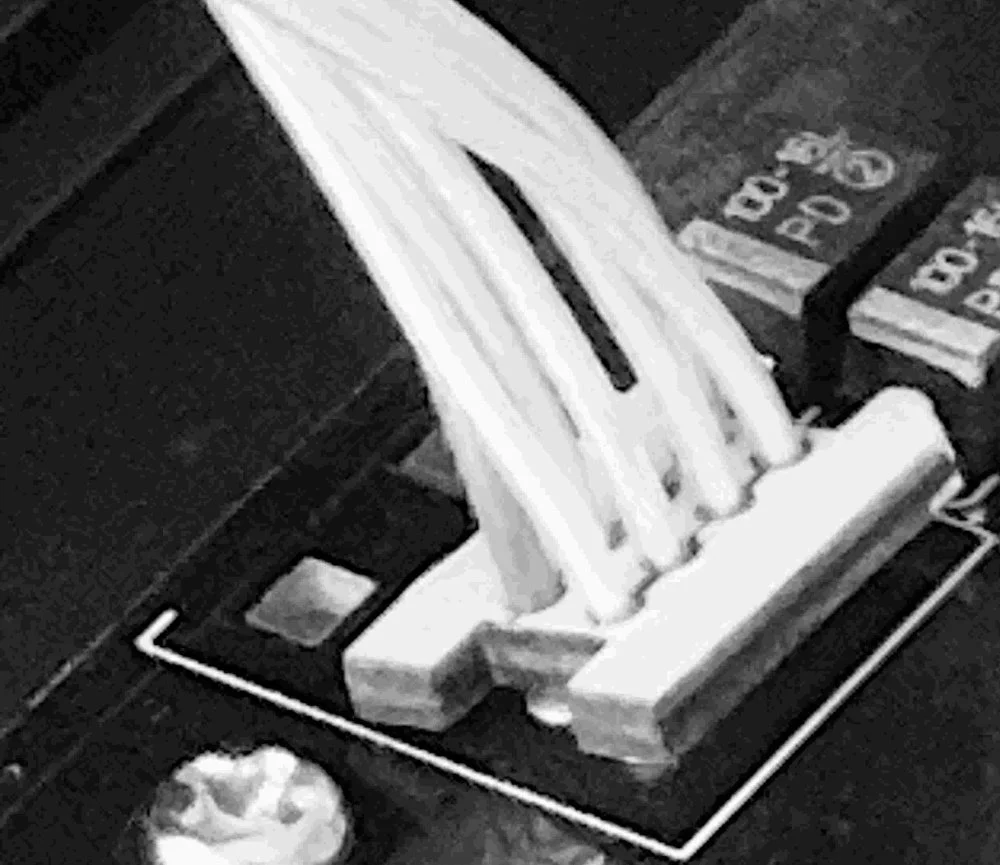

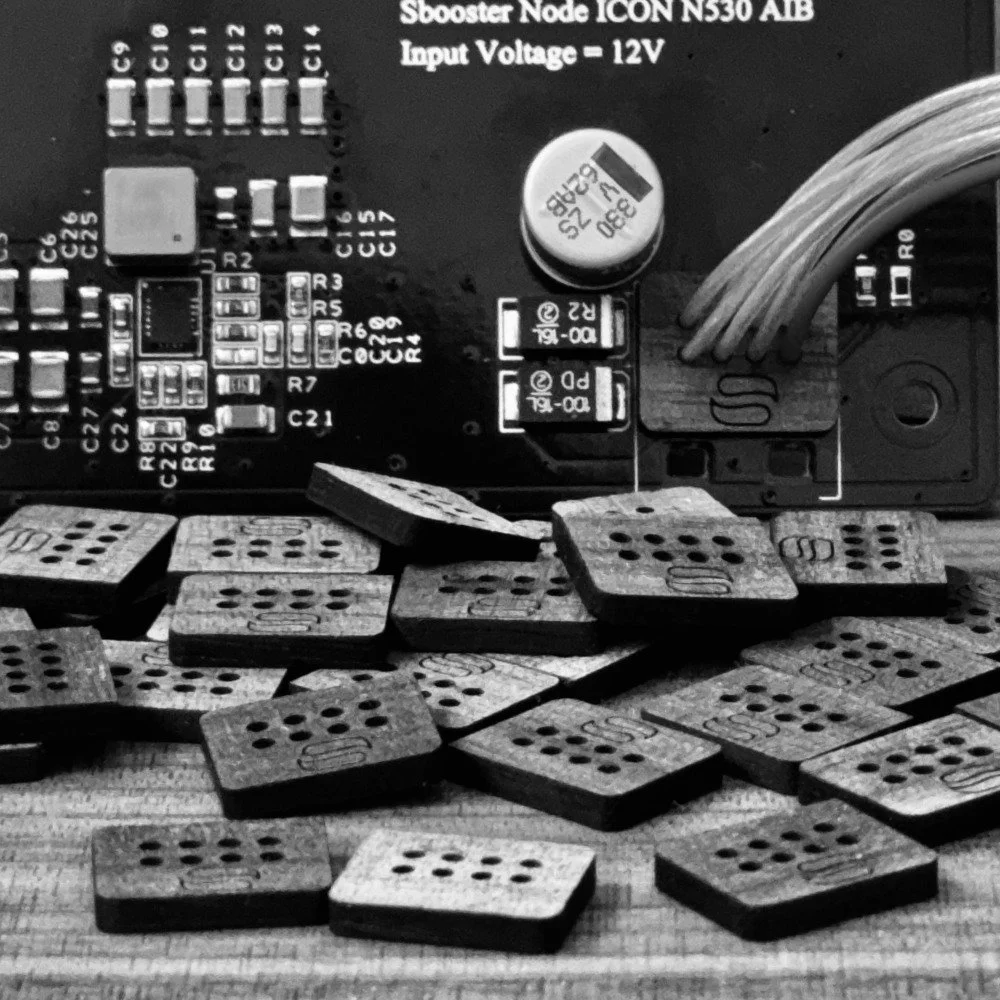

Strain relief bracket: Solid walnut bracket engineerd to protect the 8 solder joints of the silver-plated OCC harness from mechanical stress
Installation: Solder-free, fully reversible (approx. 15 min)
